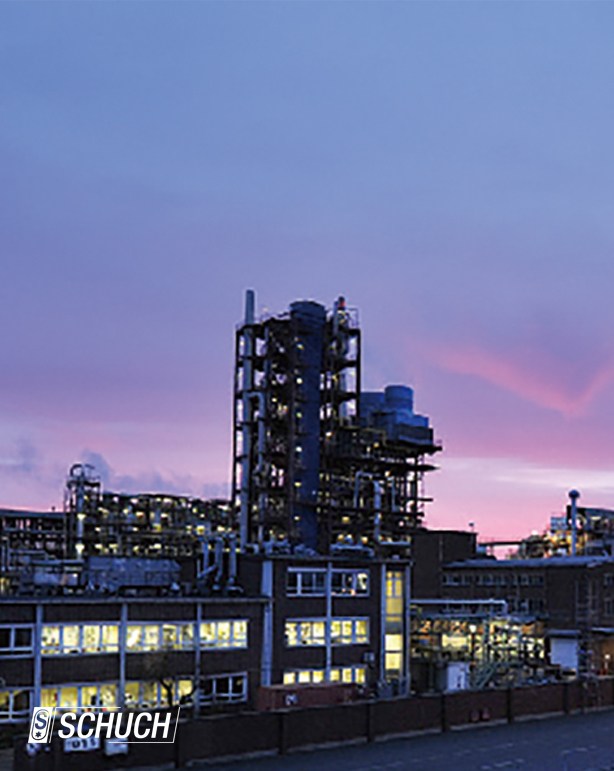

Hazardous locations of Zones 2 (gas atmosphere) and 22 (dust atmosphere), stockyards, building sites, open-air grounds, chemical and petrochemical areas etc..

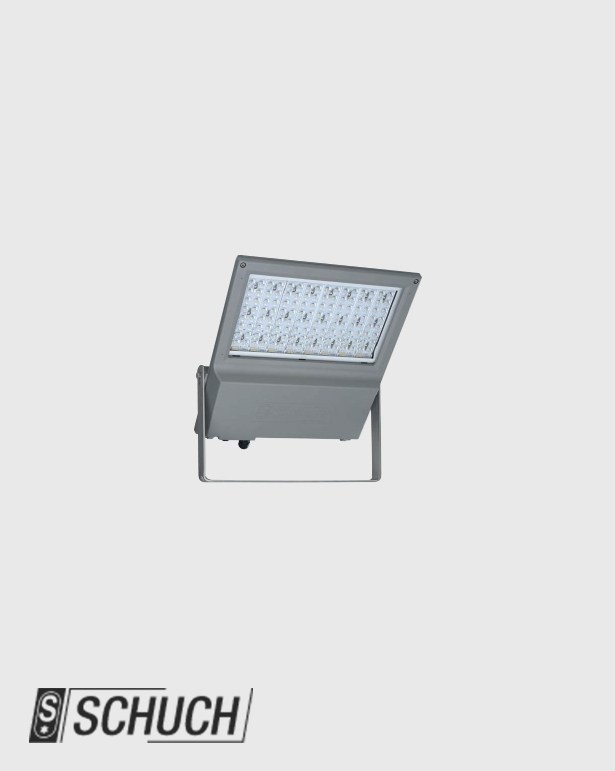

Housing and glass retaining frame are made from weather resistant diecast aluminium. The glass frame is locked by 2 socket head cap screws (M6) and it is
hinged to the body after opening. The electrical components are located inside the floodlight.
Front cover: Thermal safety glass. Connection terminal: Standard: 3 poles for max. 2,5mm² conductor Ø.

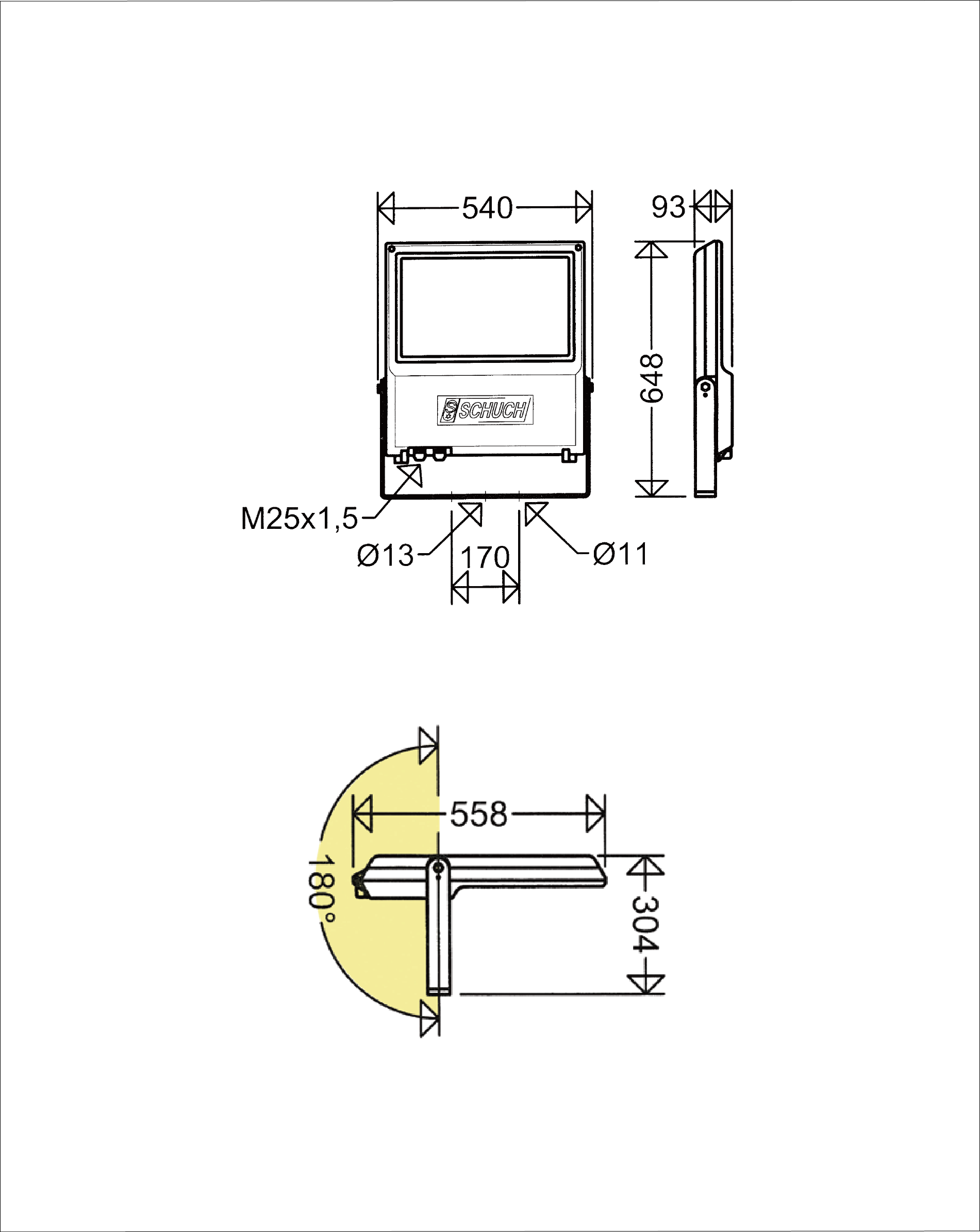

Cable entry: 1 gland M25×1.5.
Installation:
Aluminium bracket that can be tilt infinitely around the longitudinal axis of the floodlight.
More information please refer to below catalog:
SCHUCH LED-Floodlight plane surface floodlight for Ex-Zone 2&22 Series nD8800... .pdf
