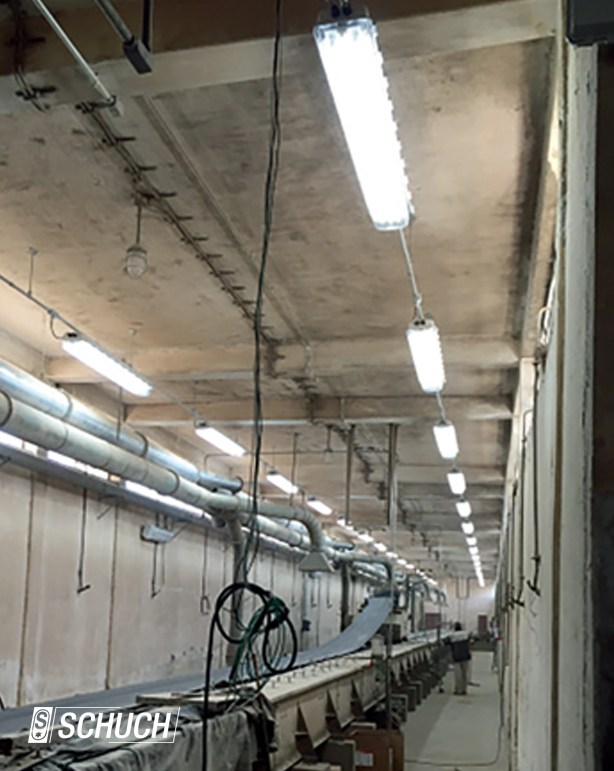

Hazardous locations of zones 2 (gas) and 22 (dust) as standard illumination or as emergency illumination in combination with external power supply units.

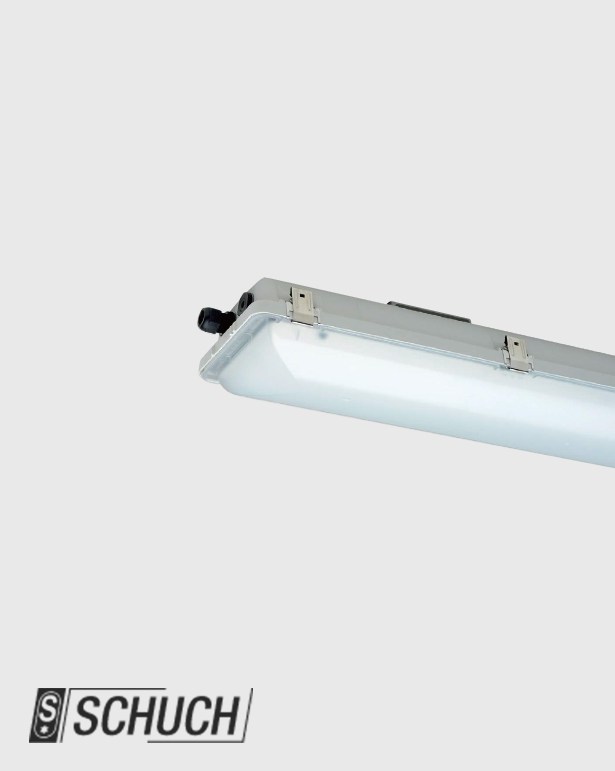

Housing: Glass fibre reinforced polyester resin.

Cover: Injected polycarbonate, frosted (F) or clear.

Closure: Stainless steel clips (KE), two of them as safety clip (KES), to be opened with screwdriver only.

Reflector: Aluminium, painted, carrying the LED-modules and all electrical components, clipped into the cover, suspendable.

Connection: 3 poles up to 2,5 mm².

Cable entries: 3 entries M25×1,5, (2 glands - one of them is plugged).

Standard: Facing downwards or forwards.

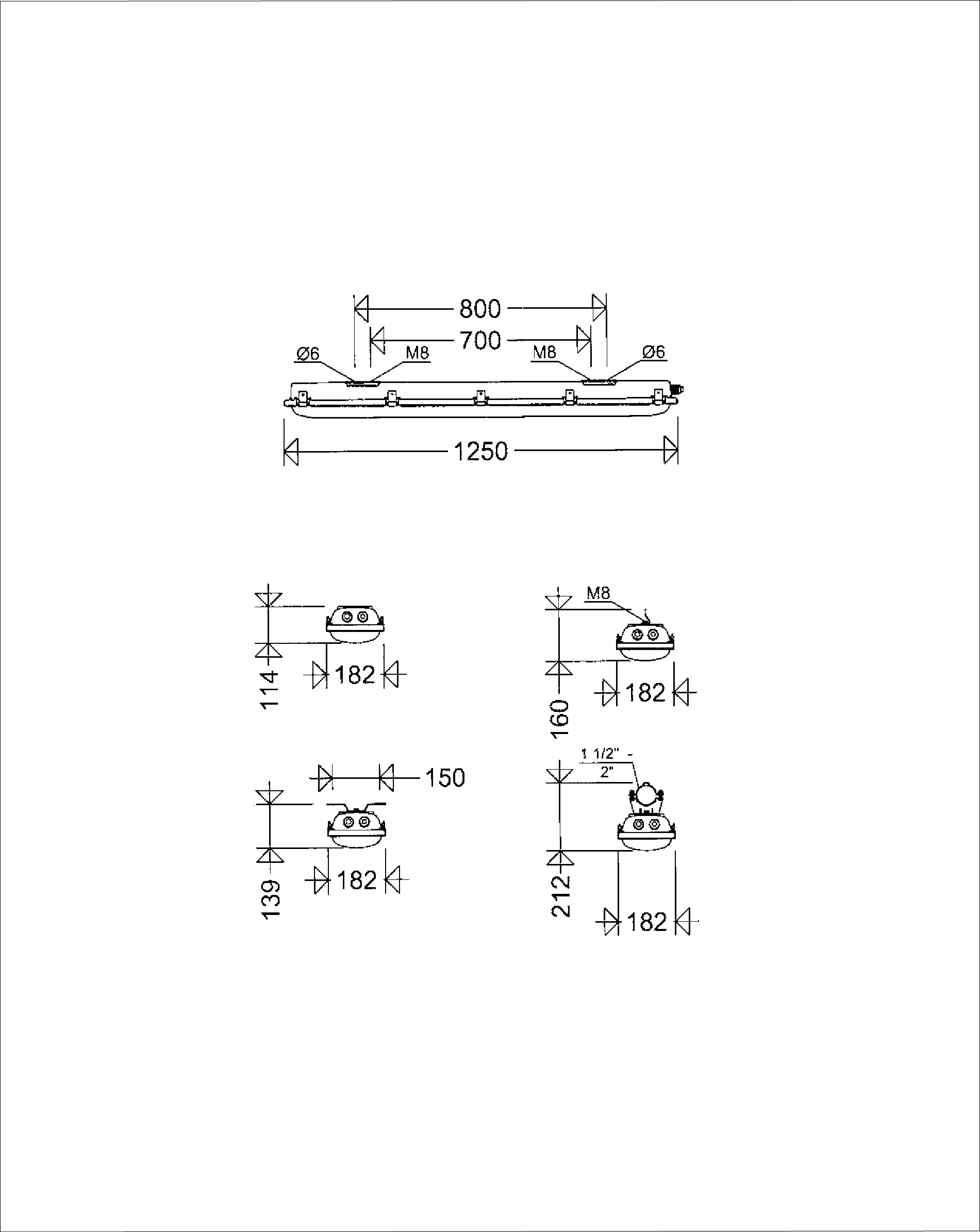

Mechanical installation: Mounting accessories see spare parts/accessories. Sealing gaskets for direct ceiling mounting are included.

More information please refer to below catalog:

SCHUCH LED-Light Fitting for Ex-Zones 2&22Series nD866... .pdf
