Applications:

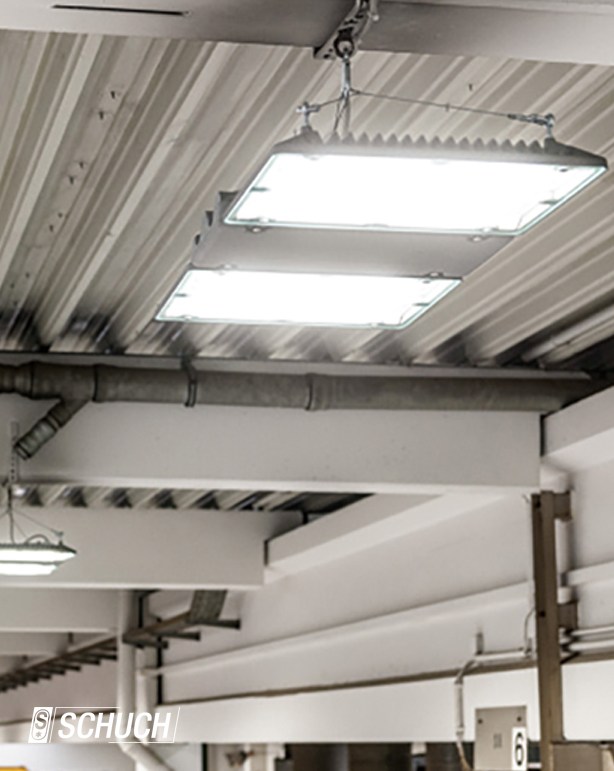

Hazardous locations, of Zones 2 (gas) and 22 (dust), in assembling- and production halls, warehouses, in industrial sectors, workshops, chemical factories etc.

Design:

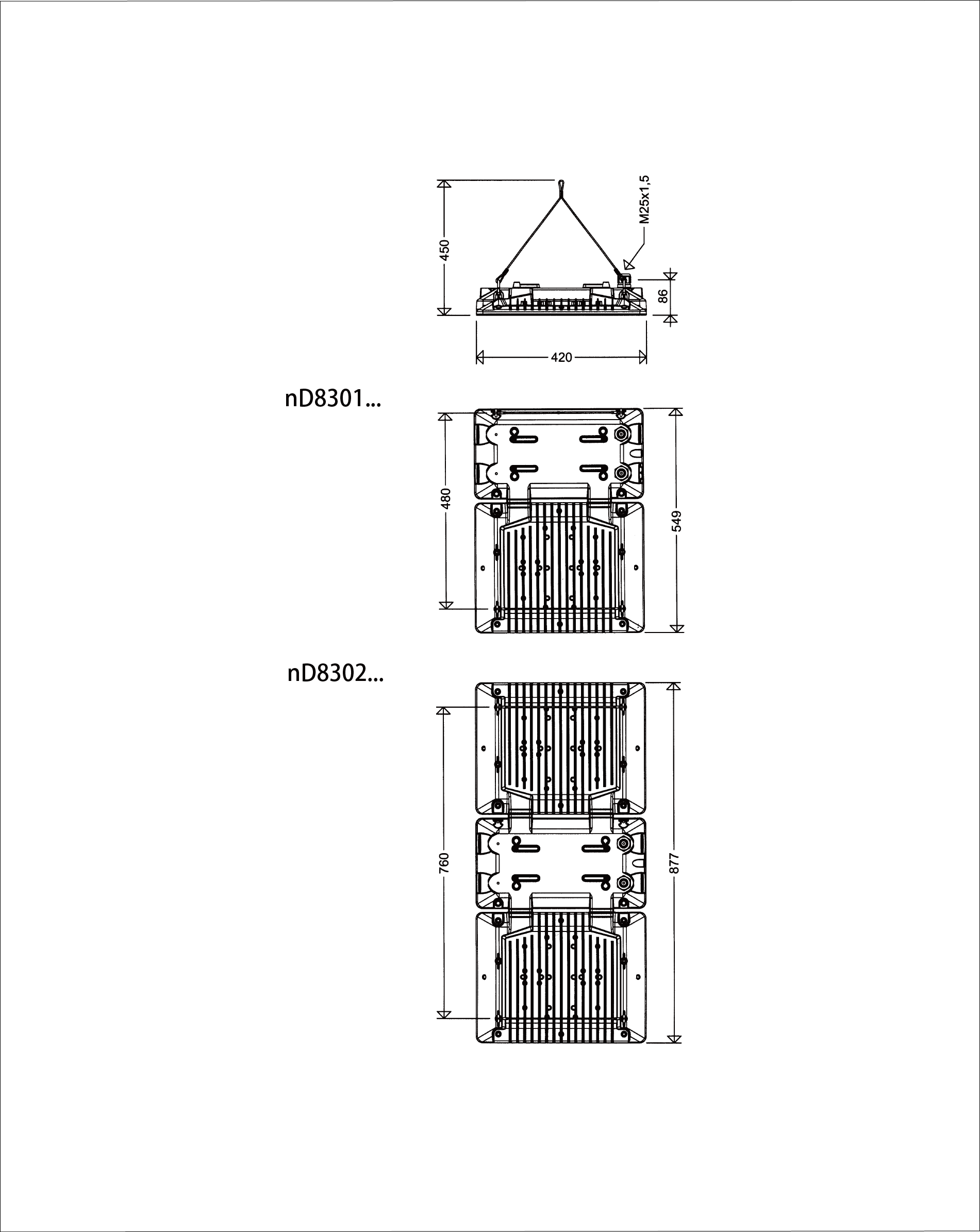

Two versions are available: 1 (nD8301) or

2 (nD8302) LED segments.

Housing: Diecast aluminum, DB 702

(mica-iron paint).

LED-segment(s) with LED modules, optics  (B- and TB-types) behind tempered safety glass (IK10).

ECG segment with integrated electronic control gear, prewired on terminals.

Light distribution: Without optic wide beam, with optic wide (B) or narrow-wide beam (TB).

Connection: 5 poles up to 4 mm2 Entries: 1 gland M25 x 1,5

Mounting material: 4 eyelets M6 (included in delivery) or see accessories/spare parts General Purpose: Beaming downwards 0°.

Please download the catalogue to get more information.  → nD8301&8302.pdf
