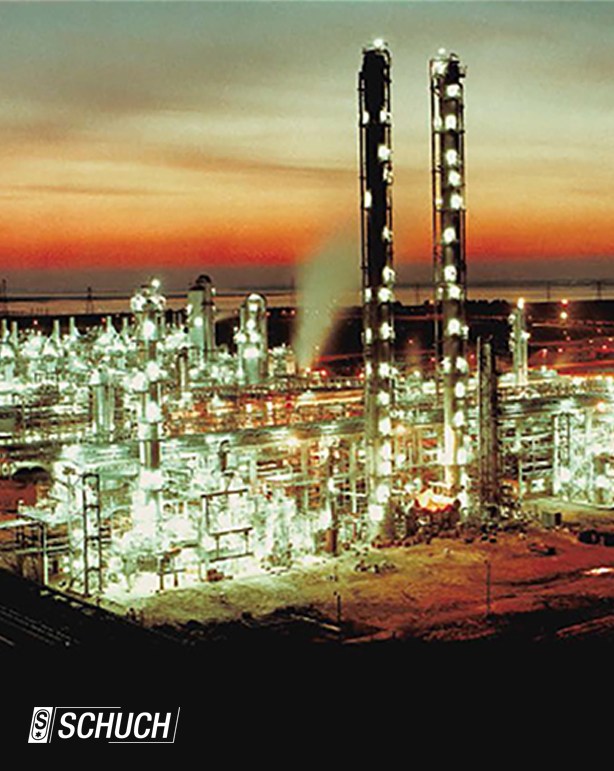

Hazardous locations of zones 1 (gas) and 21 (dust) as standard illumination or as emergency illumination in combination with external power supply units.

Housing: Glass fibre reinforced polyester resin.

Cover: Injected polycarbonate, frosted (F) or clear, silicone gasket.

Closure: Stainless steel clips (KE), two of them as safety clip (KES), to be opened with screwdriver only.

Reflector: Aluminium, painted, carrying the encapsulated LED-modules and all electrical components, clipped into the cover, removable as a unit.

Connection: 3 poles up to 4 mm².

Cable entries: 3 entries M25×1,5, (2 glands - one of them is plugged).

Standard: Facing downwards or forwards.

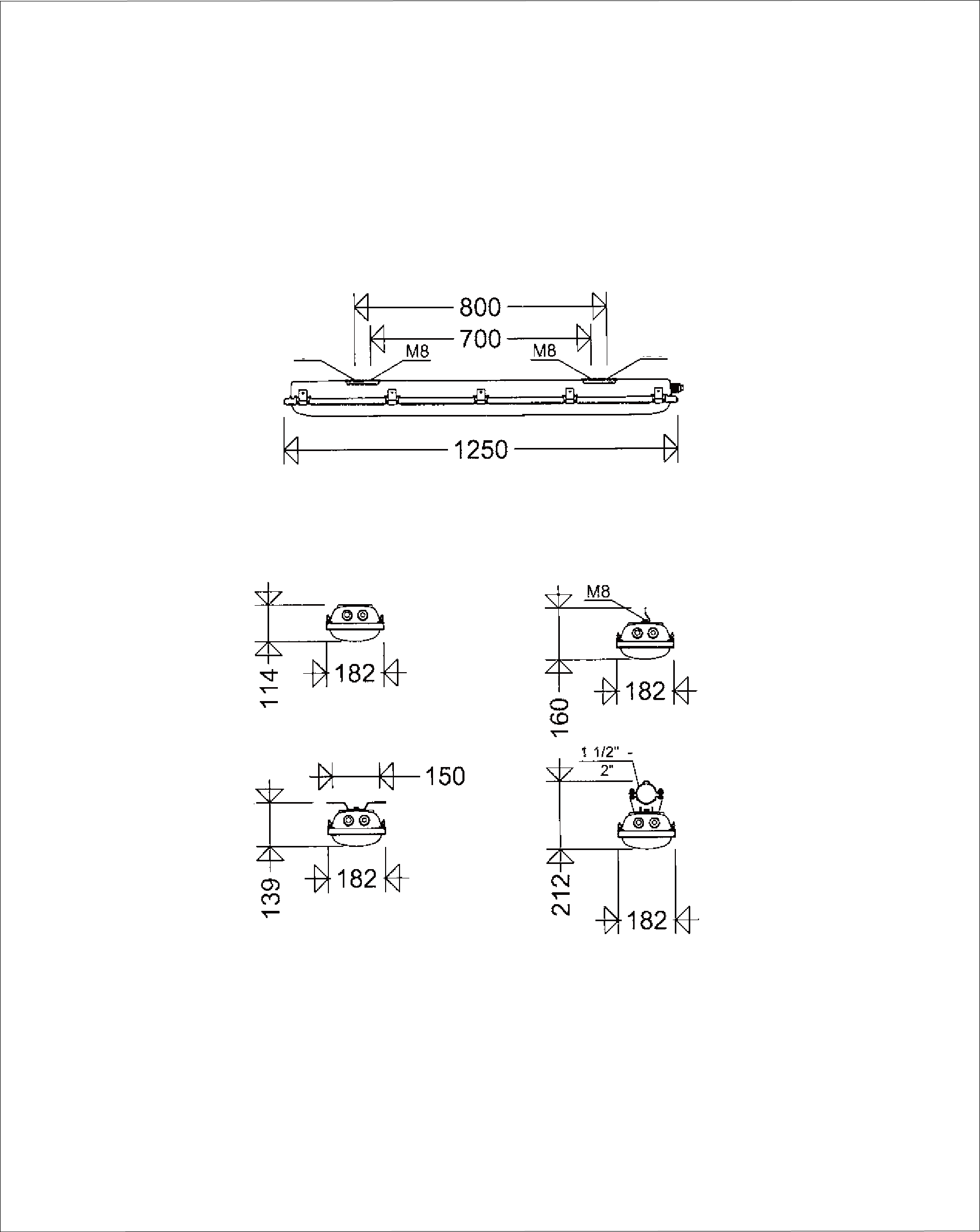

Mechanical installation:

Mounting accessories see spare parts/accessories.

More information please refer to below catalog:

SCHUCH LED-Light Fitting for Ex-Zones 1&21Series e865... .pdf
